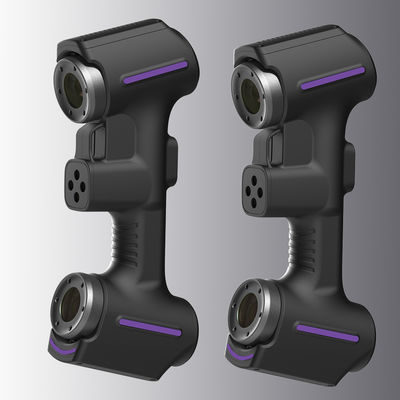

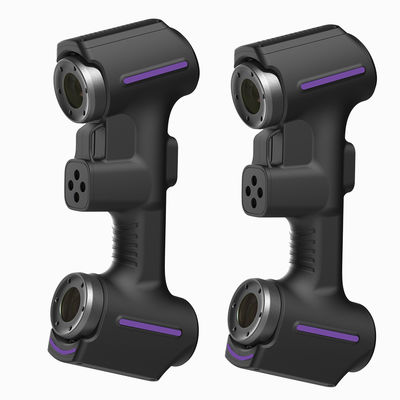

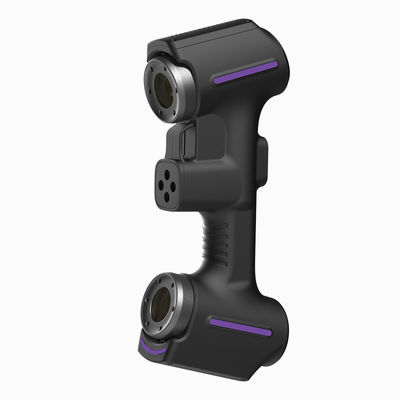

u STL-34M integrates AI algorithms into metrology-grade 3D scanning. With a refined, minimalist design, it emphasizes practicality and portability. The device is rugged, durable, and easy to carry.
u Unrestricted by working environments, STL-34M enables 3D measurements anytime, anywhere — whether in tight spaces or on large-scale objects.
u The innovative design adopts an internally sealed independent core cavity paired with a passive fin heat sink to ensure linear temperature stability and improve overall precision repeatability.
u Equipped with 50 blue crossed laser lines, it delivers up to 5,400,000 measurements per second with a scan area of 650 mm × 550 mm, ensuring a seamless and efficient 3D digitization experience.
u Metrology-grade precision captures every detail, while ultra-fast scanning speeds enable efficient 3D modeling.
| Handheld 3D Scanner | ||
| Model | STL-34M | |
| Code # | 310-111 | |
| Scanning Mode | High-Speed Scanning | 26 Crossed blue laser scanning lines |
| Precision Scanning | 7 Beams of parallel blue laser lines | |
| Deep Hole Scanning | 1 Additional blue laser line | |
| Highest Precision | 0.020mm | |
| Maximum Scanning Speed | 5,400,000 measurements per second | |
| Maximum Scanning Field | 650mm×550mm | |
| Laser Class | Class II (Eye Safe) | |
| Maximum Resolution | 0.01mm | |
| Volume Accuracy |
0.015mm+0.035mm/m 0.015mm+0.025mm/m (Selection of photogrammetric scale bars) |
|
| Reference Distance | 300mm (200mm fine mode) | |
| Depth of Field | 550mm | |
| Output Format | STL, PLY, TXT etc. | |
| Operating Temperature | -10°C to 40°C | |
| Interface Type | Recommended USB 3.0 | |
